Name: Industrial RJ45 Female Connector 10100 BaseT with LED 8P8C
Brand: DGKYD
Price: 0.51 USD

Model Number : KRJ-406CNL

Place of Origin : Guangdong, China

Brand Name : DGKYD

MOQ : 1

Price : $0.51-0.85

Type : RJ45

Gender : Female

Housing Material : PBT BLACK

Contact Plating : GOLD 6u''

Shield Material : Copper Alloy preplated with Nickel

LED Option : With LED

LED Color : Green & Yellow

Number of Contacts : 8

Transformer Option : With transformer

Performance Speed : 10/100 BASE-T

Port Configuration : Single

Termination Method : Through Hole-Press-Fit

Mounting Style : Through Hole

Mounting Orientation : Side Entry (Right Angle)

UL Flammability Rating : UL 94V-0

Contact Now

Product Description

Industrial Grade 10/100 Base T Ethernet Connectors Surface Mount CAT5E RJ45 Female Connector LEDs Integrated Magnetics PCB

Part Number	KRJ-406CNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	With LED
LED Color	Green & Yellow	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

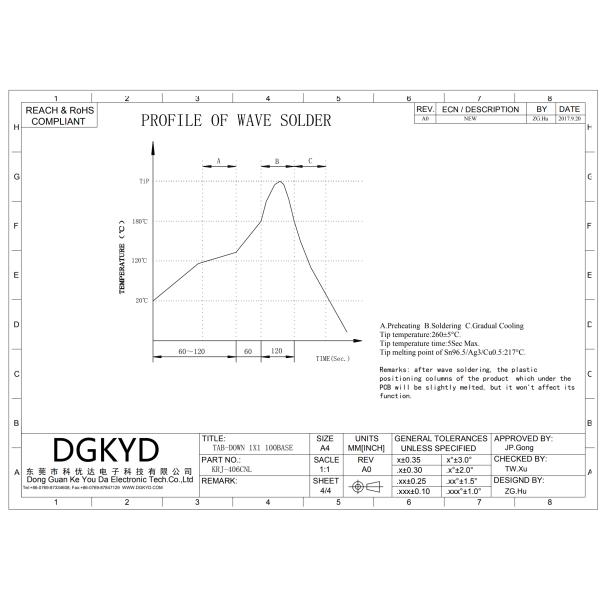

Data Sheet

Detail page XQY
